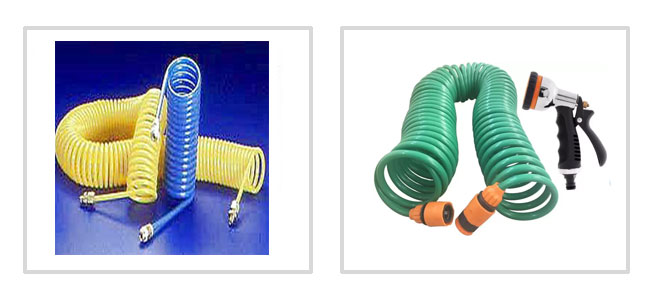

Retractable coiled hoses are made from Nylon & Polyurethane tubes. These coils are used wherever shop air is conducted from the main line to portable air operated
tools, air blowguns, air nozzles, etc.Can also be used for low pressure hydraulics and other applications where the advantages of a self-retrieving tubing's are
desired. These coils has greater flexibility, extra strength and smoother recoil action. It is much lighter than ordinary air hose. The self retraction feature gives
the operator free floor working space and at same time allows access to a wide area. Retractable coiled hoses are available with or without brass end fittings and
available in different working lengths as under.
Retractable Coiled Hoses are made from Nylon & Polyurethane tubes. These coils are used wherever shop air is conducted from the main line to portable air-operated
tools, air blow guns, air nozzles, etc.Can also be used for low-pressure hydraulics and other applications where the advantages of a self-retrieving tubing's are
desired.
| PU Part No. | Nylon Part No. |
Tube Size mm. |
Coil I.D mtrs. |
Working length |
|---|---|---|---|---|
| PURC 4 | NRC 4 | 4X3 | 40 | 1 TO 15 |
| PURC 6 | NRC 6 | 6X4 | 50 | 1 TO 15 |
| PURC 8 | NRC 8 | 8X6 | 62 | 1 TO 15 |
| PURC 10 | NRC 10 | 10X8 | 75 | 1 TO 15 |
| PURC 12 | NRC 12 | 12X10 | 100 | 1 TO 15 |
Retractable coiled hoses are also available in Polyurethane tubings from 1 meters-10 meters. working length.
